Most flooring contractors measure two things: how much work went out the door, and whether the bank balance went up. Both are lagging, and neither tells you why. The Flooring Installation KPI Dashboard in Google Sheets puts 15 operational KPIs – across 6 groups – on one page, scored against target and against last year, month to date and year to date, with a traffic light on every row.
In the sample data that ships with the file, September shows 140 jobs completed against a target of 139 and 103,164 square feet laid against 97,682 – a strong month by volume. Yet Installation Gross Margin came in at 35.79% against a 37.75% target: 94.8% achievement, flagged red as Missed. That single contrast is the argument for a KPI scorecard. Busy and profitable are not the same measurement.
Key Features of the Flooring Installation KPI Dashboard
15 KPIs in 6 groups. Volume & Revenue (Installation Jobs Completed, Square Feet Installed, Average Job Value), Financial Performance (Revenue per Installed Square Foot, Installation Gross Margin), Productivity & Schedule (Crew Productivity per Installer-Day, On-Time Job Completion, Days from Order to Install), Quality & Compliance (Rework and Reinstall Rate, Subfloor Prep Failure Rate, Moisture Test Compliance), Materials & Cost (Material Waste Rate, Damaged Material Claims per 100 Jobs) and Sales & Customer (Estimate-to-Close Rate, Customer Satisfaction Score).
One dropdown drives the whole workbook. Pick a month on the KPI Dashboard sheet and the seven header cards, all 15 rows, the KPI Trend page and the KPI Analysis page all recalculate. There is no refresh step, no query, no add-on and no Apps Script anywhere in the file.
MTD and YTD on the same row. Each KPI shows Actual, Target, Achievement %, Status, Prior Year and a vs-PY arrow twice – once for the selected month, once for the year to date. You never have to open a second file to see whether a bad month is a bad year.
Direction-aware achievement. Every KPI is typed UTB (upper the better) or LTB (lower the better) on the KPI Definition sheet. Achievement is Actual / Target for UTB and Target / Actual for LTB. This is the detail most home-made spreadsheets get wrong: in the sample file, Material Waste Rate at 7.41% against a 7.42% target scores 100.1% and shows green, while Days from Order to Install at 17.98 days against a 17.22-day target scores 95.8% and shows amber. A rising waste or cycle-time number is never rewarded.
Published thresholds. On Target from 100%, At Risk between 95% and 99%, Missed below 95%. They live in the Status formulas rather than in a hidden setting, so you can move them to match your own tolerance.
Dashboard Pages Explanation
Home
The launch page. Three summary cards (15 KPIs, MTD + YTD, 100% formula-driven), then link blocks to the three dashboard pages, the three input sheets and the reference sheets, plus a three-step start guide: enter your data, pick a month, read the scorecard.

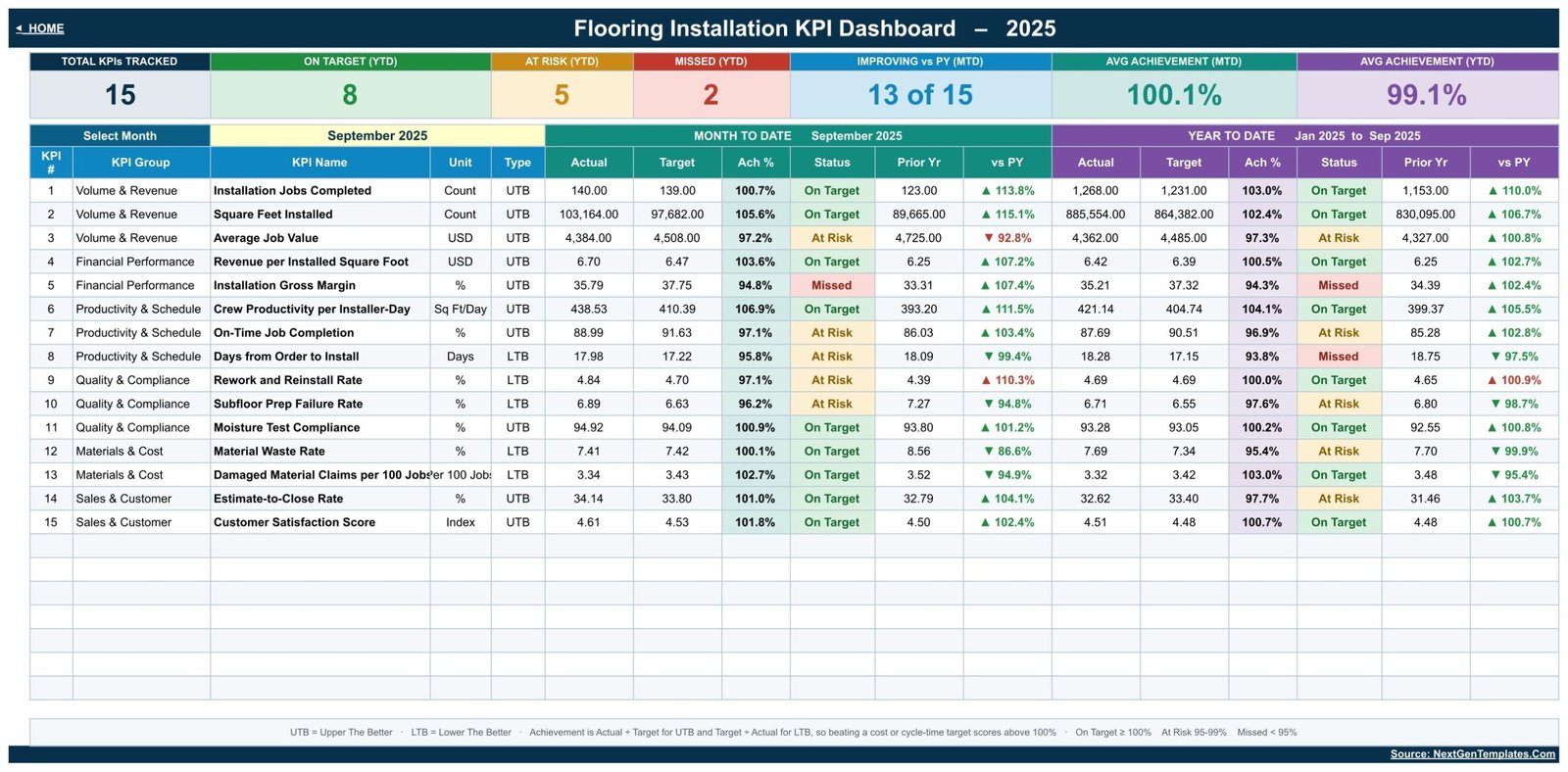

KPI Dashboard
The scorecard itself. Seven header cards run across the top: Total KPIs Tracked, On Target (YTD), At Risk (YTD), Missed (YTD), Improving vs PY (MTD), Average Achievement (MTD) and Average Achievement (YTD). In the sample year those read 15, 8, 5, 2, 13 of 15, 100.1% and 99.1%. Beneath them, the month selector and all 15 KPI rows with their MTD and YTD blocks.

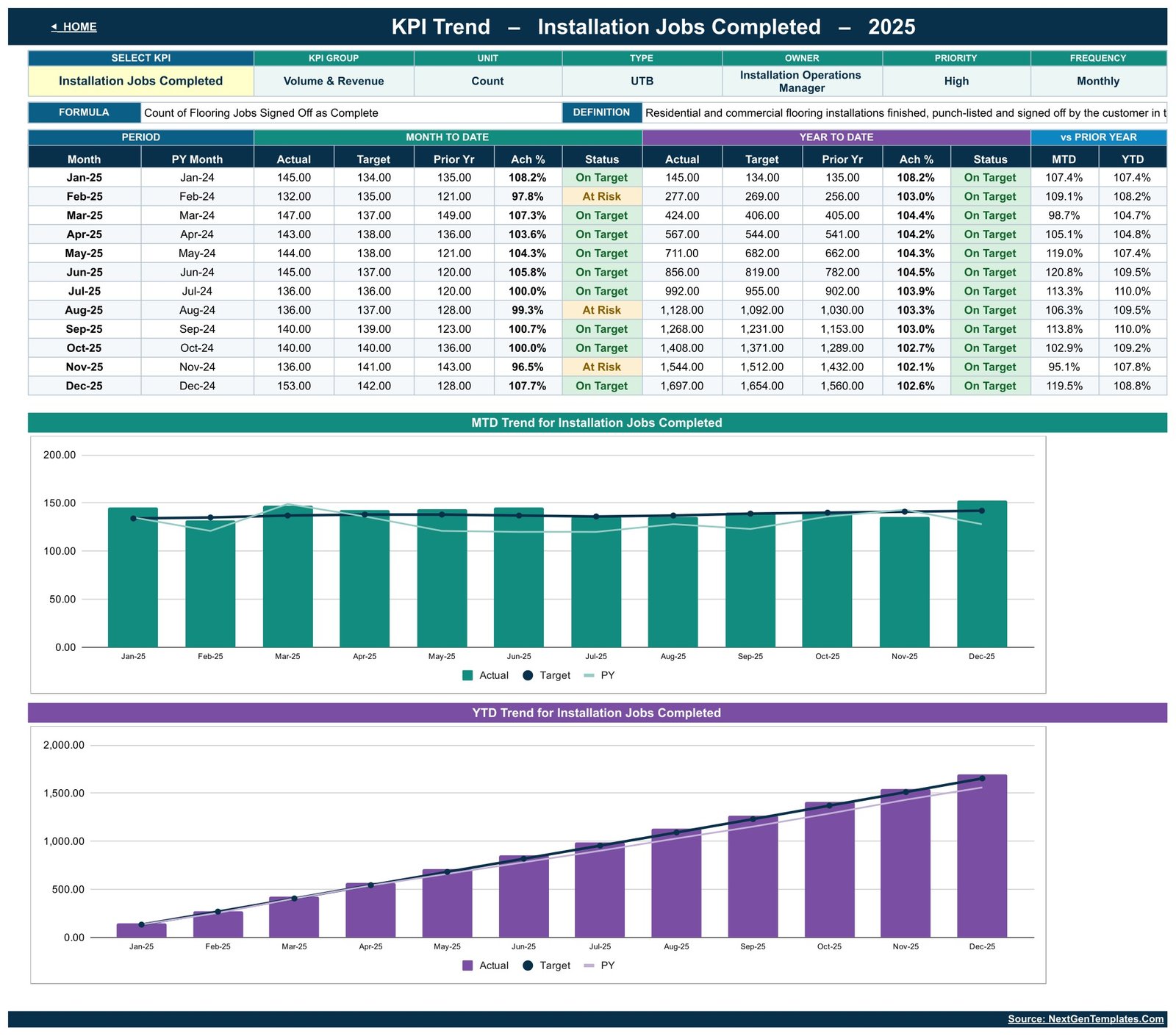

KPI Trend
Pick one KPI and see twelve months of it. The header restates that KPI’s group, unit, UTB/LTB type, owner, priority, frequency, formula and definition, so anyone reading the chart knows what they are looking at. Below the table sit two column charts – MTD Trend and YTD Trend – each plotting actual against a target line and a prior-year line.

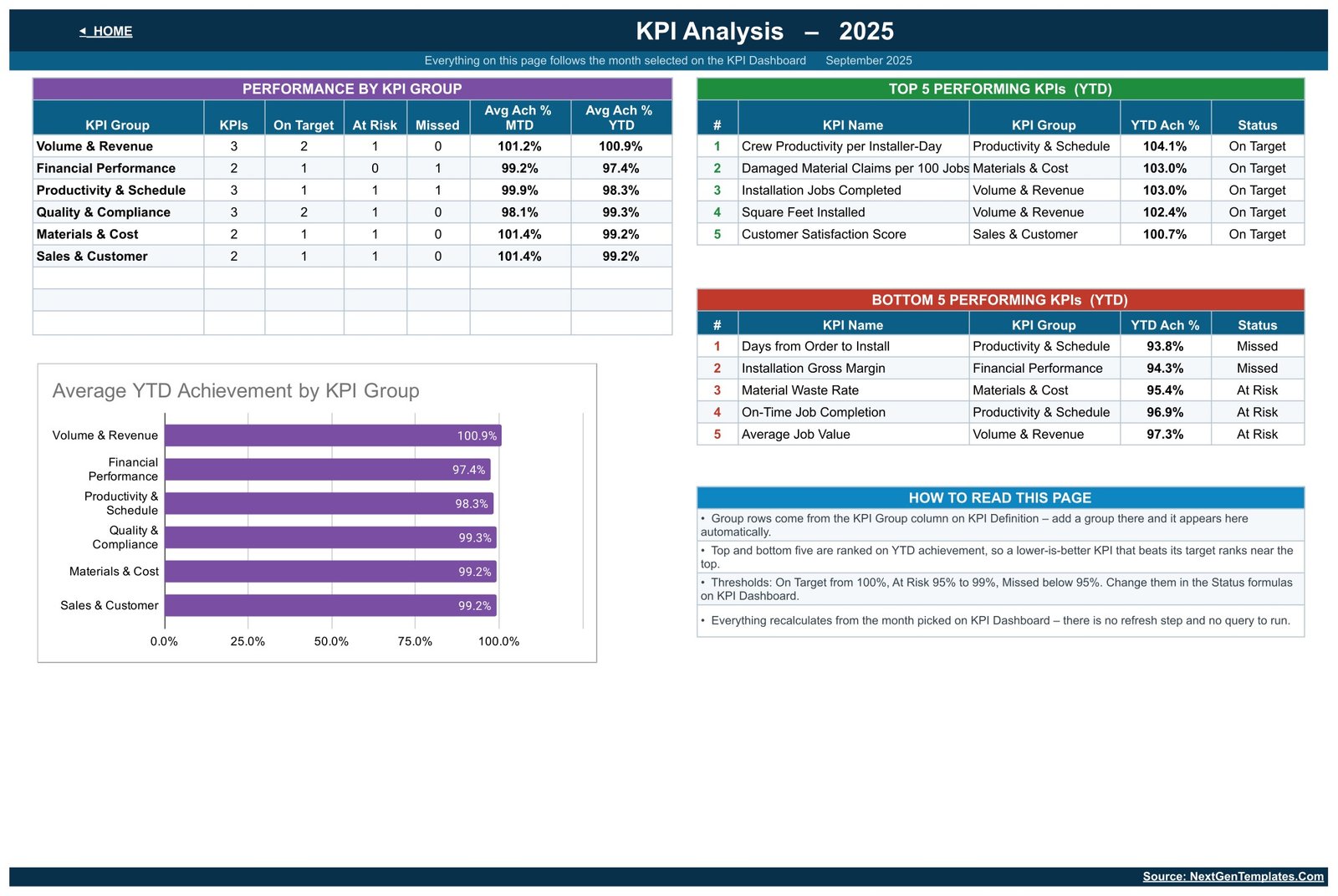

KPI Analysis
Performance by KPI group – count of KPIs, how many are On Target, At Risk and Missed, and average MTD and YTD achievement – plus an Average YTD Achievement by KPI Group bar chart and two ranked tables. In the sample year the Top 5 opens with Crew Productivity per Installer-Day at 104.1% and the Bottom 5 opens with Days from Order to Install at 93.8%. Those two tables are the agenda for the monthly review.
The three input sheets
KPI Input – Actual, KPI Input – Target and KPI Input – PY. One row per KPI, one MTD/YTD column pair per month, yellow cells only. Cell E3 on the Actual sheet holds the first month of the reporting year – change it and every month header and every YTD roll-up re-bases to your fiscal calendar.

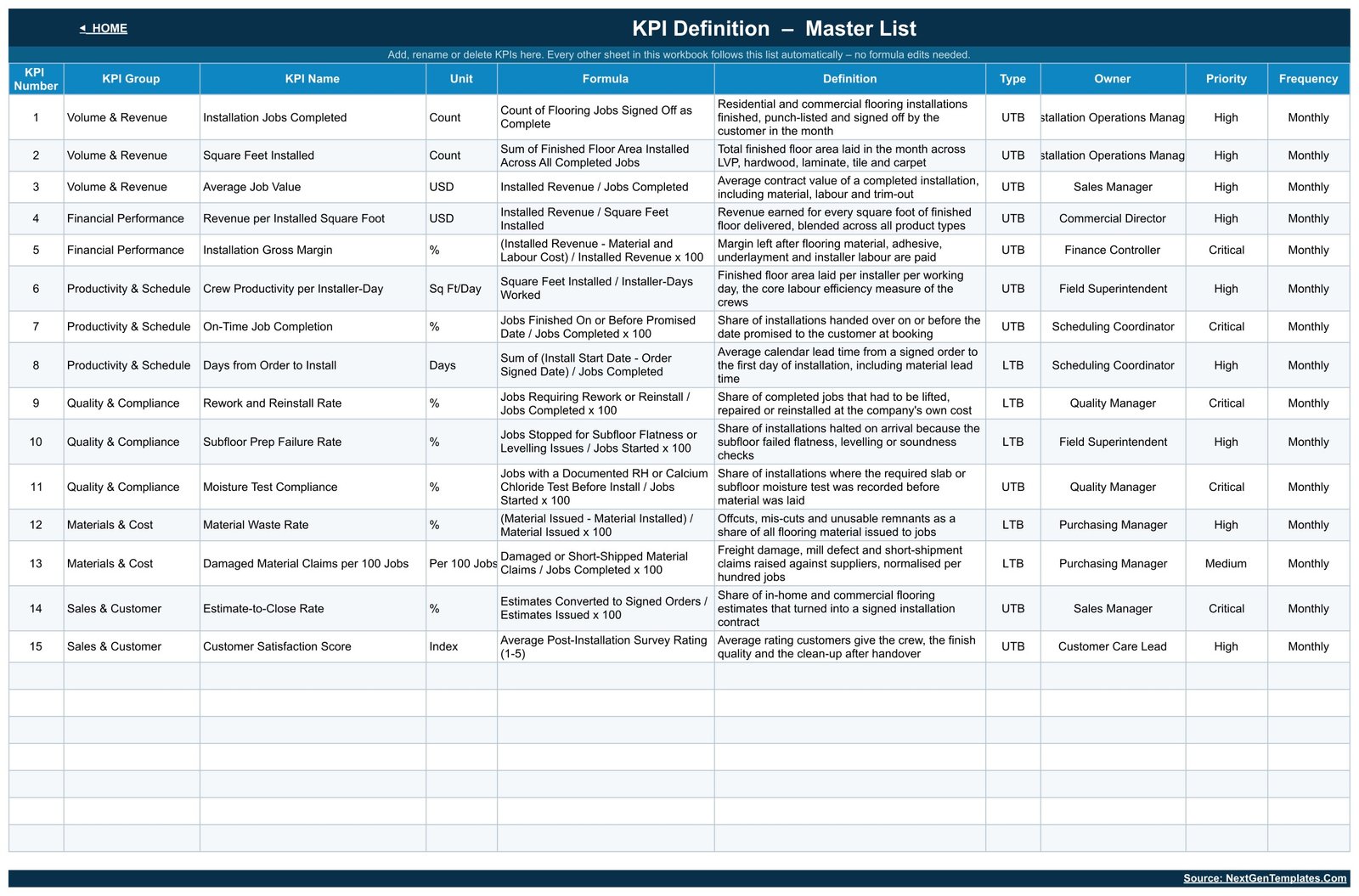

KPI Definition
The master list, and the sheet that makes the workbook worth buying rather than building. Every KPI carries its number, group, name, unit, formula, plain-English definition, type, owner, priority and frequency. Add a row here and it appears everywhere else automatically – no formula edits. The owners in the shipped file are real flooring roles: Installation Operations Manager, Field Superintendent, Scheduling Coordinator, Quality Manager, Purchasing Manager, Sales Manager, Commercial Director, Finance Controller and Customer Care Lead.
Google Sheets vs. Excel vs. Paid Field-Service SaaS – Feature Comparison
| This template (Google Sheets) | Excel / Power BI version | Paid SaaS (Jobber, ServiceTitan) | |
|---|---|---|---|
| Cost | $8.99 one-time | $12.99 one-time | $49-$399 per user, per month |
| Platform | Any browser | Excel desktop / Power BI Desktop | Vendor cloud |
| Setup time | Under 15 minutes | Under 15 minutes | Days to weeks |
| Real-time team collaboration | Yes, native | OneDrive co-authoring only | Yes |
| Mobile access | Yes | Limited | Yes |
| Customisable KPI list | Yes – edit one sheet | Yes | Usually fixed |
| Share with a link | Yes | No | Seat-based |
| Year-1 cost at 5 users | $8.99 | $12.99 | $2,940-$23,940 |
| Job scheduling and dispatch | No | No | Yes |
| Who owns the data | You, in your Drive | You, on your disk | The vendor |
Who Should Use This Template
A residential or commercial flooring contractor with two to fifty installers who already knows the monthly totals and wants them scored. An operations manager who reports upward once a month. A franchisee reporting into a group. A finance controller who wants margin, waste and lead time sitting next to volume instead of in three separate files.
It is not for you if you expect the numbers to arrive by themselves. This is a typed-input scorecard: no connector to QuickBooks, Jobber, ServiceTitan, RFMS or an ERP, and no import step. It is also not a job costing tool, an estimating package, a crew scheduler or an invoicing system – there are no per-job records in the file at all, only monthly totals. And it holds one reporting year at a time; multi-year comparison means keeping one copy per year.
Real-World Use Cases
The margin leak. Volume is green – 140 jobs, 103,164 square feet, both above target – but Installation Gross Margin scores 94.8% and Average Job Value 97.2%. The scorecard says the shop is buying work. Year to date the picture holds: margin 94.3%, average job value 97.3%. That is a pricing conversation, not a productivity one.
The lead-time argument. Days from Order to Install is the worst YTD performer in the sample file at 93.8%. Because it is LTB, the workbook scores it honestly – 18.28 days year to date against a 17.15-day target – rather than showing a cheerful downward arrow. A scheduling coordinator can take that straight to a supplier review.
The multi-branch roll-up. Keep one copy per branch, change nothing but the input sheets, and compare the Average Achievement (YTD) card across them. One number, one line in the board pack, and the KPI Analysis page underneath if anyone asks why.
Advantages of the Flooring Installation KPI Dashboard
- Nothing to install. Pure spreadsheet formulas – no add-on, no Apps Script, no macro, no authorisation prompt.
- The KPI list is editable data, not code. Rename, regroup or replace a KPI on one sheet and every other sheet follows.
- Direction handled correctly. LTB metrics score properly, which is where most self-built scorecards quietly mislead.
- Owner, priority and frequency on every KPI, so a red light has a name attached before the meeting starts.
- Fiscal year in one cell. E3 on the Actual sheet re-bases all twelve months.
- Shareable and mobile. A normal Google Sheet – share by link, set per-person edit rights, read it on a phone from a job site.
- One-time cost. $8.99, lifetime access, no per-seat fee.
Opportunities for Improvement
Being honest about the limits is more useful than a feature list:
- Manual entry. Somebody types the monthly totals. There is no integration, and there is no plan for one – that is the trade for a file with nothing to break.
- Monthly granularity only. No weekly view, no per-job drill-down, no crew-level or product-type split. If you need to know which installer or which LVP line is losing money, this will not tell you.
- One year per copy. The three input sheets hold twelve months each. Year-over-year comparison is limited to the Prior Year column.
- The KPI Trend page shows one KPI at a time. Comparing two trends side by side means two screenshots.
- Sample data is synthetic. Everything shipped in the file is demo data for 2025, there to show the formulas working. Clear it before you rely on a single number.
Best Practices
- Set the fiscal year first, before you type anything else. Changing E3 later is safe, but it is easier to get it right at the start.
- Prune the KPI list. Fifteen KPIs is a lot to review monthly. Delete the ones nobody owns rather than leaving them blank – a blank row still counts in the header cards.
- Check the UTB/LTB flag on every KPI you add. One wrong flag turns a worsening safety, waste or cycle-time metric green. It is the single highest-cost mistake you can make in this file.
- Fill the Target and Prior Year sheets too. Achievement and the vs-PY arrows are meaningless without them, and the Top 5 / Bottom 5 tables rank on YTD achievement.
- Run the review from KPI Analysis, not the scorecard. Start with the Bottom 5, then drill into KPI Trend for that metric to see whether it is one bad month or a slope.
- Protect the formula sheets. Use Google Sheets’ protected ranges to lock everything except the yellow input cells before you share the file with the team.Flooring Installation KPI Dashboard in Google Sheets
Explore Relevant Templates
Get the template here: Flooring Installation KPI Dashboard in Google Sheets – $8.99 (regular $13.99), instant download.
The same dashboard in other tools: Flooring Installation KPI Dashboard in Excel and Flooring Installation KPI Dashboard in Power BI.
Related but different – the simpler single-page card layout: Flooring Installation KPI Scorecard in Google Sheets and Flooring Installation KPI Scorecard in Excel.
Other trades on the same engine: Roofing Contractor KPI Dashboard in Google Sheets, Electrical Contractor KPI Dashboard in Google Sheets, Plumbing Business KPI Dashboard in Google Sheets. Running the whole operation rather than just measuring it? See the Carpet and Flooring Business Management System Web App.Flooring Installation KPI Dashboard in Google Sheets
Frequently Asked Questions
Is this the KPI Dashboard or the KPI Scorecard?
This is the KPI Dashboard: a month picker, MTD and YTD blocks on every row, a dedicated KPI Trend page and a KPI Analysis page with group roll-ups and Top 5 / Bottom 5 tables. The Flooring Installation KPI Scorecard is a separate, simpler product with a card-based single-page layout. They are different templates, not two versions of one.
Do I need a paid Google Workspace account?
No. A free Google account is enough. The file uses only standard spreadsheet functions, so there is nothing to install, authorise or renew.Flooring Installation KPI Dashboard in Google Sheets
Can I change the KPIs to match my business?
Yes. The KPI Definition sheet is the master list – add, rename, regroup or delete a KPI there and the dashboard, trend page, analysis page and all three input sheets follow it automatically. You never edit a formula.
How are “lower is better” KPIs scored?
Achievement is Actual / Target for UTB KPIs and Target / Actual for LTB KPIs. So beating a waste, rework or lead-time target scores above 100% and shows green, and missing it shows amber or red. Five of the fifteen shipped KPIs are LTB.Flooring Installation KPI Dashboard in Google Sheets
Does it connect to my job management or accounting software?
No, and by design. You enter monthly totals on the three input sheets. There is no connector, no import and no refresh – which also means there is nothing to break when a vendor changes an API.Flooring Installation KPI Dashboard in Google Sheets
What exactly do I download?
A PDF containing the Google Sheets “Make a copy” link plus a short guide. Click the link and a fully editable copy lands in your own Google Drive. Your data stays in your account; nobody else can see it.
Can my whole team use it?
Yes. It is an ordinary Google Sheet – share it, set edit or view rights per person, and everyone sees the same live numbers. The licence covers your business; it does not permit reselling or redistributing the file.
About the Author
Built by PK – Microsoft Certified Professional with 15+ years of Excel, Google Sheets, and Power BI experience. Founder of NextGenTemplates, reaching 300K+ subscribers across YouTube channels. Every template is hand-built and tested before release.Flooring Installation KPI Dashboard in Google Sheets
Conclusion
A flooring business does not usually fail on volume. It fails on the gap between volume and margin, on lead times that slip while everyone is busy, and on rework nobody totals up until year end. The Flooring Installation KPI Dashboard in Google Sheets makes that gap visible in one page a month – 15 KPIs, scored honestly in both directions, against target and against last year, with an owner beside each one.Flooring Installation KPI Dashboard in Google Sheets
It will not run your jobs and it will not type your numbers. What it will do is turn a set of monthly totals into a management meeting with an agenda. Get the Flooring Installation KPI Dashboard in Google Sheets for $8.99 and you can be reading your own scorecard inside fifteen minutes.Flooring Installation KPI Dashboard in Google Sheets
